I. Product Overview
YDQ6 Isolated dual power automatic transfer switch set switch and logic control in one, no external controller, real mechatronics automatic transfer switch, having a voltage detection, frequency detection, communication interface, electrical, mechanical interlocking and other functions, automatic, electric remote emergency manual control.
Switch operation is controlled by a logic control board with a variety of logic commands to manage the motor, gearbox, run to achieve, motor driven switch spring energy storage, instantaneous release mechanism to accelerate the rapid making and breaking the circuit or circuit-switched, clearly visible through Status achieve security isolation, greatly improves the electrical and mechanical properties. Product Control section of metal casing, the switching section is made of glass fiber unsaturated polyester resin shell, there is a strong dielectric properties, protection and reliable operational safety.
The product is suitable for AC 50Hz, 690V and below, rated current up to 3200A and below the two-way power (N commonly used power and standby power or generator power R) power supply system failure (power outage, undervoltage, broken because of the way the power occur phase) and automatically switch between the power supply to ensure power supply reliability and security. Widely used in high-rise buildings, residential quarters, hospitals, airports, docks, fire, metallurgy, chemicals, textiles and other important places not allowed power, to achieve unattended continuous power supply. Products are handsome in appearance, novel, simple, small, full-featured, is the best choice of similar products.
This product complies with lEC60947-6-1 (1998) "Low-voltage switchgear and control equipment, automatic transfer switching equipment" and GBl4048-2000 standards.

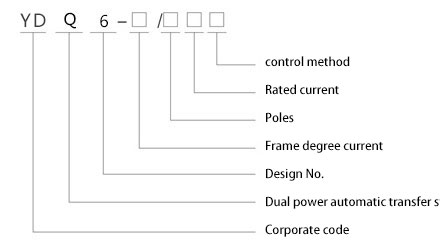

Second, the model and the meaning

Third, the main technical parameters

Fourth, the performance and features
● double row composite contact/horizontal pull-out mechanism of micro-motor pre-storage and microelectronic control technology, the basic realization of zero flying fox (no arc chute);
● using a reliable mechanical interlock and electrical interlock, do not use a separate element load isolation switch, safe and reliable;
● The zero-bit technology, emergency situations can be forced to zero (and cut off two-way power), to meet the need for fire protection;
● Run load isolation switch with a single motor drives, switching stable and reliable, no noise, low-impact;
● Operating drive motor is switched only in the implementation of the current through the load isolation switch instantly, without providing steady work for the current master, significant energy saving;.
● Run load isolation switch with mechanical interlock devices to ensure common, reliable backup power noninterference;
● has clear-off position indicator, padlock isolation and other functions, to achieve a reliable power supply and the load between;
● good safety performance, high degree of automation, high reliability and service life of more than 8000 times;
● mechatronic design, switching accurate, flexible, smooth, adopts the international advanced logic control technology, anti-interference ability, without external interference;
● has a main power supply together, standby power points; the main power points, standby power together; main and backup power supplies are disconnected three stable work (IO-II);
● Easy installation, control circuit using plug-in terminal connection;
● four operating functions :: emergency manual operation, the electric remote control operation, automatic control state of emergency disconnect operation, automatic control operation.

Five, the product uses
YDQ6 series dual power automatic conversion switch is mainly used for AC 50Hz ,, rated voltage 380V. DC rated voltage 220V, rated current or motor power distribution network 16A to 1600A of a main one or mutual load standby power switching systems and generator sets and mains switch. At the same time it can be used for infrequent making and breaking circuit and circuit isolation purposes.
Our products are widely used in fire fighting, hospitals, banks, high-rise buildings and other places not allowed off important supply of transmission and distribution systems and automation systems.

Six control features
● Dual power switch with a three-pole four poles (three poles + neutral pole can be off) product.
● Dual power development is divided into 20A, 40A, 63A, 80A, 100A, 125A, 160A, 200A, 225A, 250A, 315A, 350A, 400A, 450A, 500A, 630A, 800A, 1000A, 1250A, 1600A and other 20 current levels .
● basic types: primary - backup power, automatic recovery.
Type I: 100A or less, mains - mains, since the vote since the complex, two-way power three-phase phase detection; 125A above, mains - mains, standby or mutual support Alternatively, since the vote, two-way power three phase detection;
Type II: mains - mains, standby or mutual support optional (ie, automatic recovery or from a vote of no self-recovery), two-phase power supply phase, over undervoltage detection;
Type III: Mains - oil machine, automatic recovery, two-way power three-phase phase, over-under voltage, oil-frequency detection.

Seven basic switching control features
● applies to two standby system power, automatic recovery;
● external functional extensions.

eight, I type switch control features
● 100A of the following:
A, suitable for two-way dust Standby mains;
B, when the main power supply circuit malfunction (power failure or phase) switch after delay (can be set 1 ~ 16s) is automatically put into the standby power supply circuit.
C, when the mains supply returns to normal, the switch by the delay (can be set 1 ~ 250s) automatically switches back to the main power supply circuit.
● 125A above:
A, applicable to primary and secondary system two mains or mutual backup systems.
B, switch selected as the automatic recovery function (ie primary and secondary type). When the mains supply fails (power failure, phase), switching by the delay (can be set 1 ~ 16s) is automatically put into the standby power supply circuit; when the main circuit returns to normal, the switch by the delay (can be set 1 ~ 120s) Automatic Cut back to the main power supply circuit.
C, switch selected from a vote of no self-recovery capabilities (ie mutual standby type) ,. When I channel power circuit failure (power failure, phase); a switch by the delay (can be set 1 ~ 16s) automatically into II-way power circuit; when the power supply circuit II returns to normal, the switch does not cut back to the I-way. II road only when the power circuit failure; a switch only by the delay (can be set 1 ~ 120s) automatically cut the loop I-way power circuit.
● Priority power supply circuit terminal selection by the patch.

Nine, type II switch control features
● suitable for two-way mains standby system or mutual backup systems.
● switch selected as automatic recovery function, when the main power supply circuit malfunction (phase, over voltage) switch after delay (can be set 1 ~ 16s) from automatically into the standby power supply circuit; when the main circuit return to normal: switch by the delay (can be set 1 ~ 120s) automatically switches back to the main power supply circuit.
● switch to select the automatic switching when no self-recovery function, when the I-way power supply network failure (phase, over voltage); a switch by the delay (can be set 1 ~ 16s) automatically into the II-way power circuit; when When the I-way power circuit returns to normal, the switch does not cut back to the I-way, the road only when I power circuit fails, the switch only after delay (can be set to 1 ~ 120s) automatically switch back to I-way power circuit.
● Select priority power supply circuit (125A and above) through the terminal.

ten, III switching control features
● applies mainly to the mains power supply, standby generators powered systems.
● When the mains fails, the switch controller first sends oil machine start signal, after switching delay 3s, switch first to invest in "O" position, and then when Ting (warm-up time adjustable 1 ~ 250s) automatically into oil machine power supply circuit.
● When utility power is restored to normal. Switch by the delay (can be set 1 ~ 250s) automatically switch back to the mains supply, then delay (can be set 1 ~ 250s), the controller sends out a signal to close oil machine.
● Mains, a three-phase oil-phase, three-phase over-under voltage detection, oil-frequency detection.

XI, these four switches are characteristic
● automatic, remote control, manual control functions
● Delay 0.5s detection signal to prevent malfunction
● Automatic status with remote control "O" position
● key switch to select the operating mode
● can be equipped with RS-485 communication interface (option) can be configured

XII environment
YDQ6 dual power automatic transfer switches can work reliably under the following conditions:
● no more than 2000 meters above sea level;
● ambient temperature is not higher than forty degrees Celsius, not less dry negative five degrees Celsius, relative humidity less than 95%;
● non-explosive media environment;
● No rain and snow environment;
Note: If the ambient air temperature is expected to apply to more than + 40 ℃ or below under -5 ℃ ~ -45 ℃, the user should manufacture a wide instructions.
